Performance, technology and style has always been a cornerstone of cycling. We may not have competition, but we like the feel of the car - lightweight, fast, beautiful you. Professional athlete, weekend warrior, ostrava (with Strata) hunters and recreational riders have similar aspirations - we love of machines as well as their way of life.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size26 inch
Steering angle71°
Horizontal tube length450mm
Wheelbase890mm
Seat tube angle73.5°
Seat tube length340mm
Head tube length105mm
STACK624mm
REACH321mm
Vehicle Configuration

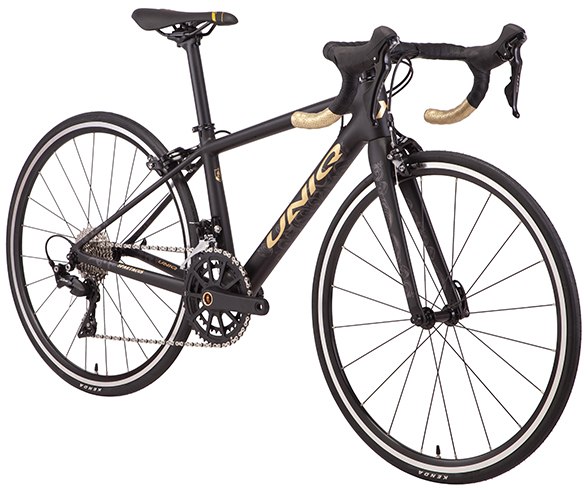

Frame
26 inch ultralight carbon frame, Japan Toray T700 carbon fiber one-piece manufacture
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:60L, Rise: +/-6°
Tyre
KENDA 26x1.0 ultralight inner and outer tires
Chainwheel
Forged 140 mm aluminum crank, 46x34 T

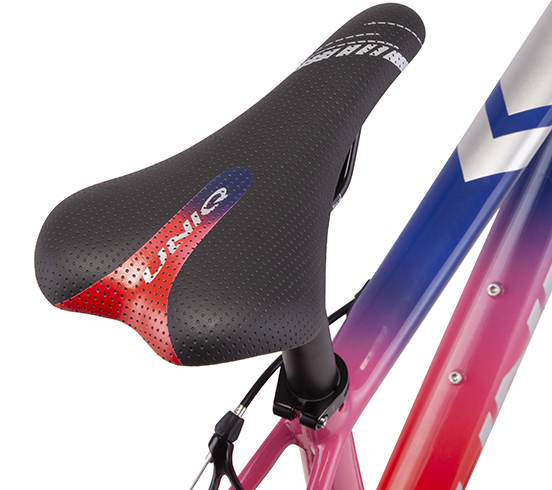

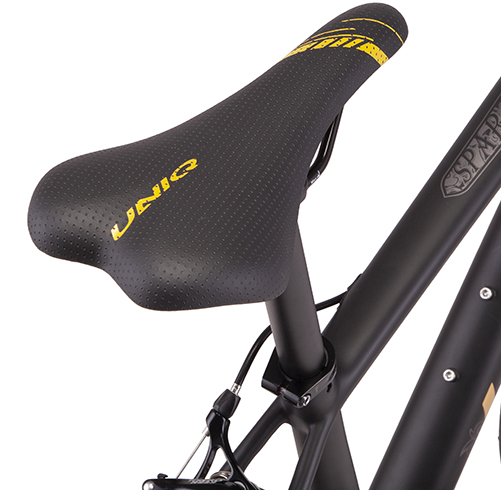

Saddle
Ergonomically designed to fit kid's anatomy
Front derailleur
SHIMANO SORA 9S
Shift lever
SHIMANO SORA 2X9S
Fork
26 inch ultralight carbon fork, 1-3/8 stem taper

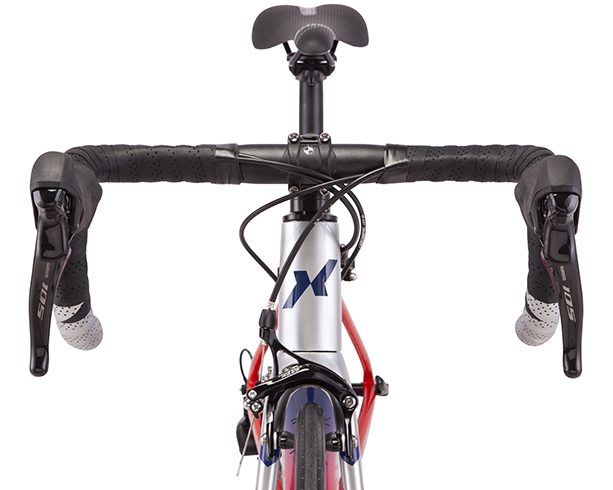

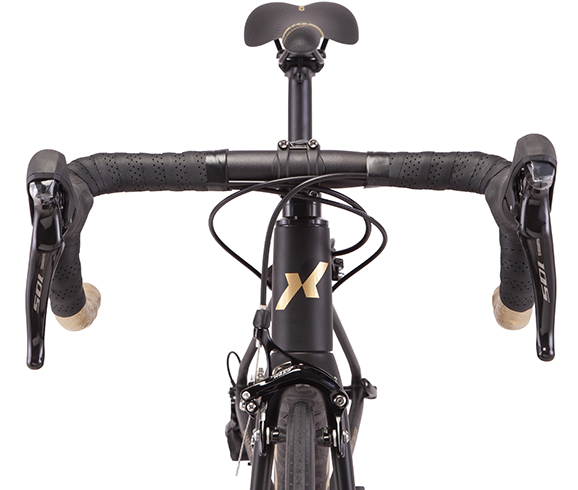

Handlebar
Carbon firber, Width:360 mm. Drop:110mm Rise:60mm
Wheel
26
inch double-chamber aluminum rims, G12 spokes, F:20H R:24H, F:100mm R:130mm CNC7075 aluminum hubs with sealed industrial bearings
