RA24
Speed 9S
Colour Blue WhiteKhakiRed WhiteBlack White
Weight 8kg
$675

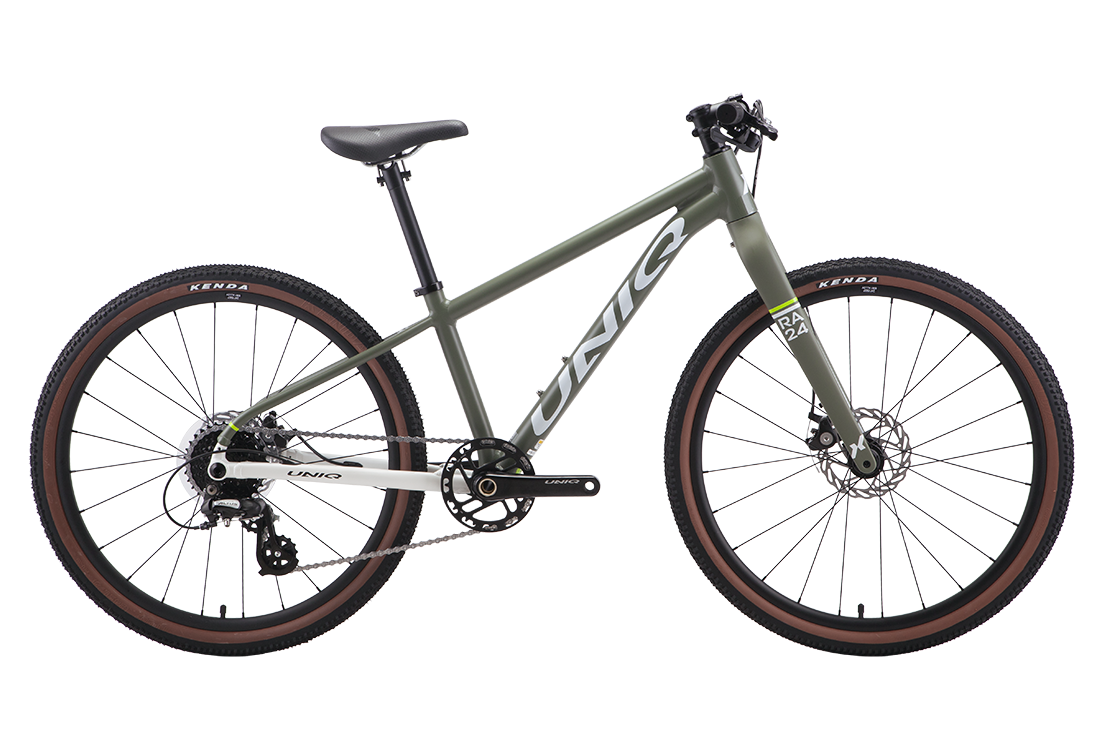

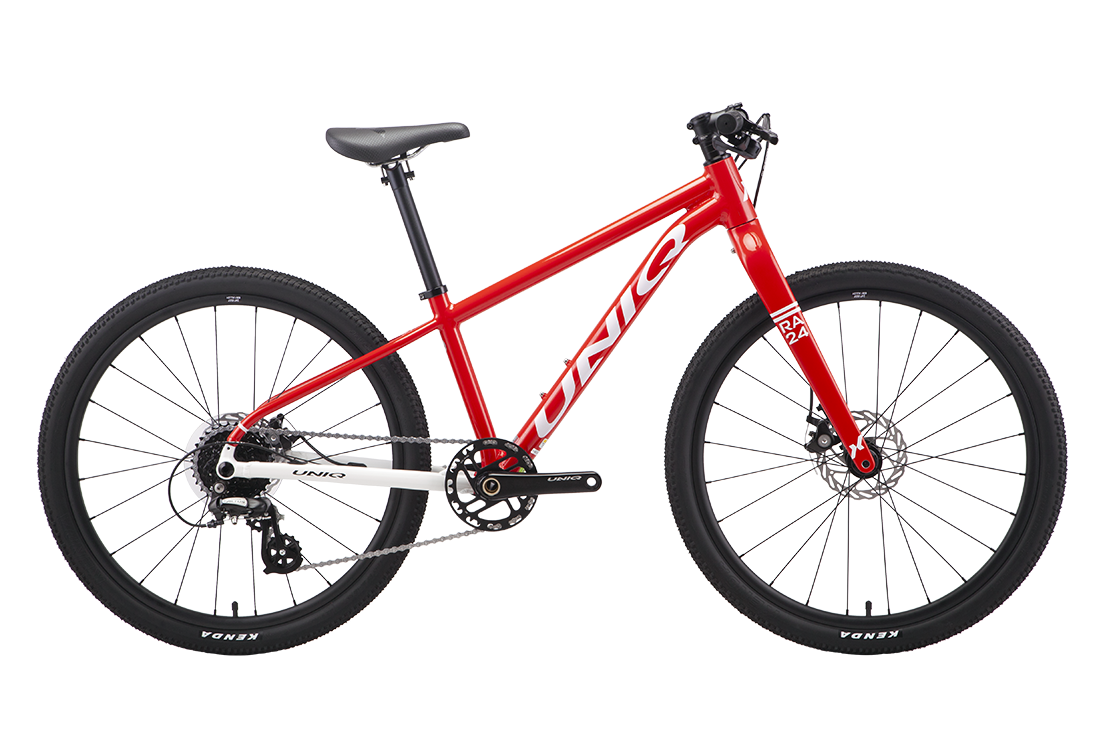

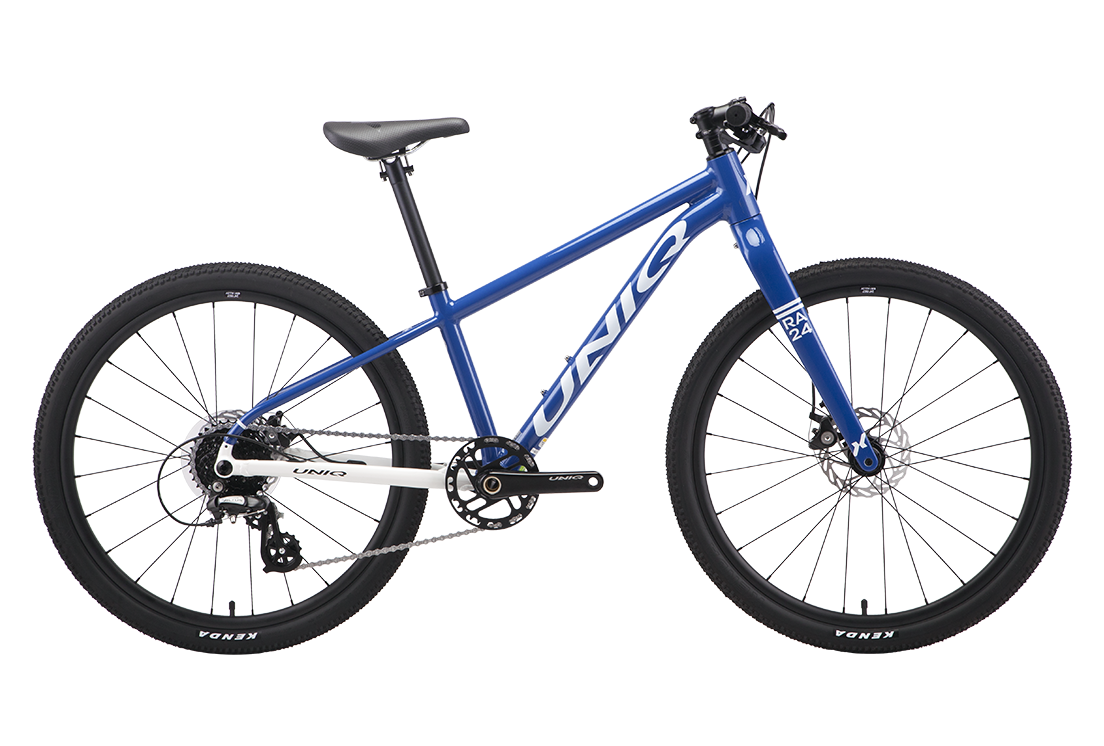

Ultralight, comfortable kids mountain bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The RA24, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber fork & aluminum frame give you a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ RA24, riding with confidence.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size 24 inch
Horizontal tube length  496 mm
Steering angle 69°
Wheelbase 980 mm
Seat tube angle 72°
Seat tube length 310 mm
Head tube length 100 mm
STACK 479 mm
REACH 350 mm

Vehicle Configuration
Tire/wheel size
24 inch lightweight aluminum frame
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:50 mm, Rise: +/-6°
Tyre
KENDA 24*1.75 ultralight inner and outer tires
Chainwheel
Forged 152 mm aluminum crank,32T
Rear derailleur
Shimano RD-M315SGS 1x8S
Saddle
Ergonomically designed to fit kid's anatomy
Chain
KMC X 9
Fork
24inch ultralight carbon fork,1-3/8 stem taper
Handlebar
Aluminum, Width:600 mm, Rise:0 mm
Wheel
24 inch double-chamber aluminum rims, G14 spokes, F:24H R:24H, F:100x12 mm R: 142x12 mm sluminum hubs with sealed industrial bearings
Brake
TEKTRO flat mounted mechanical disc brake, professional children's aluminum brake handle, front and rear disc 140 mm
Freewheel
Shimano 8S 12-32T
Shift lever
Shimano SL-M310-R
Seat Post
Anodised aluminum,27.2x250L
