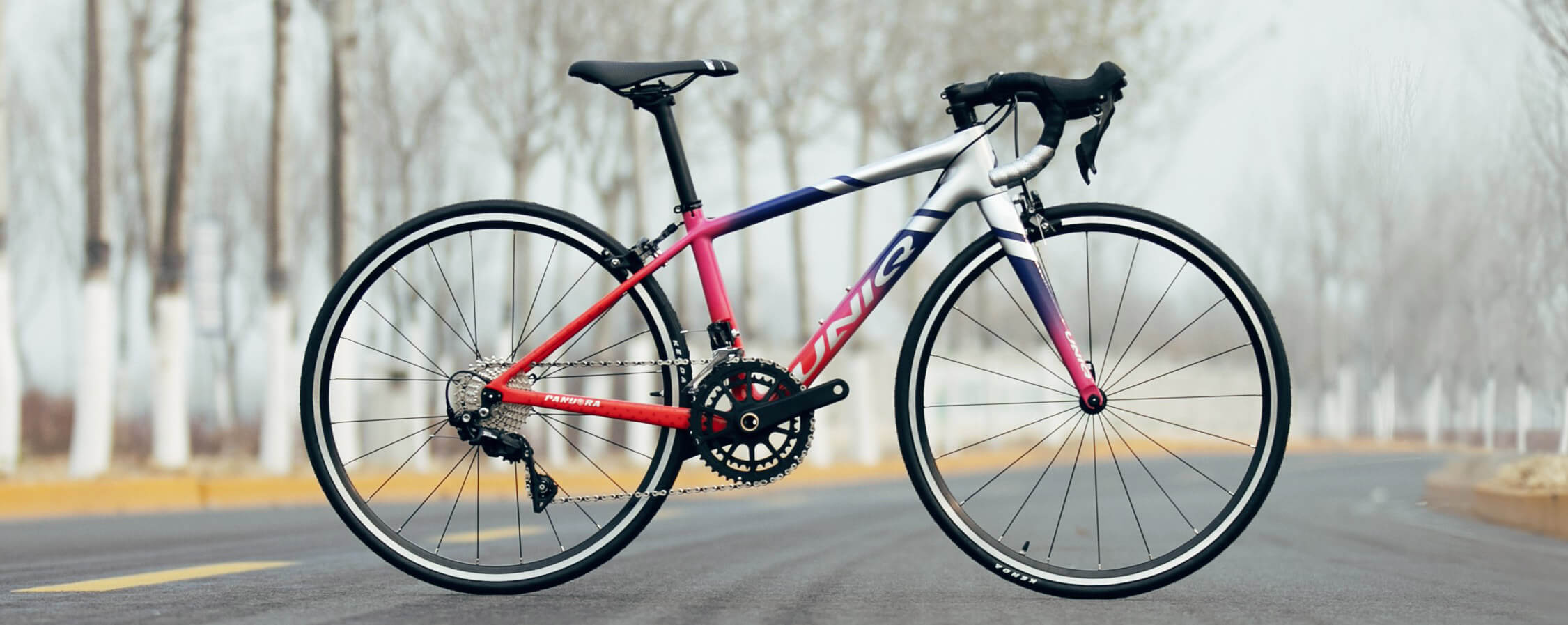

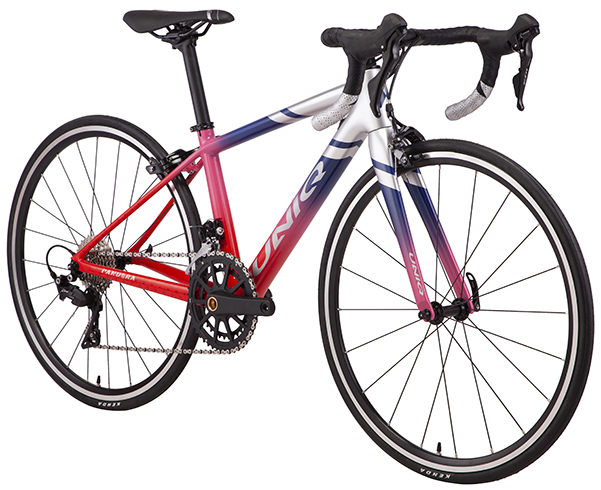

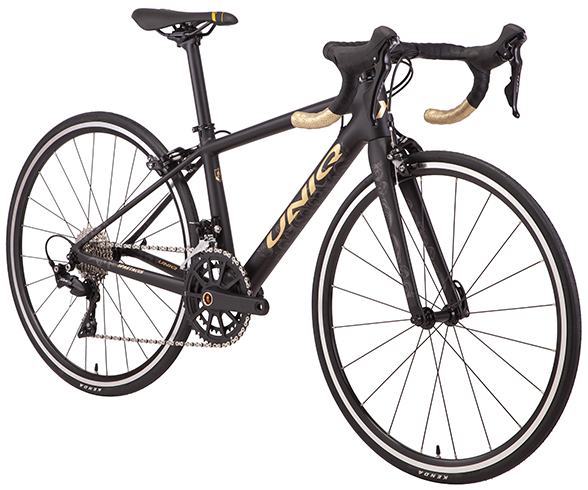

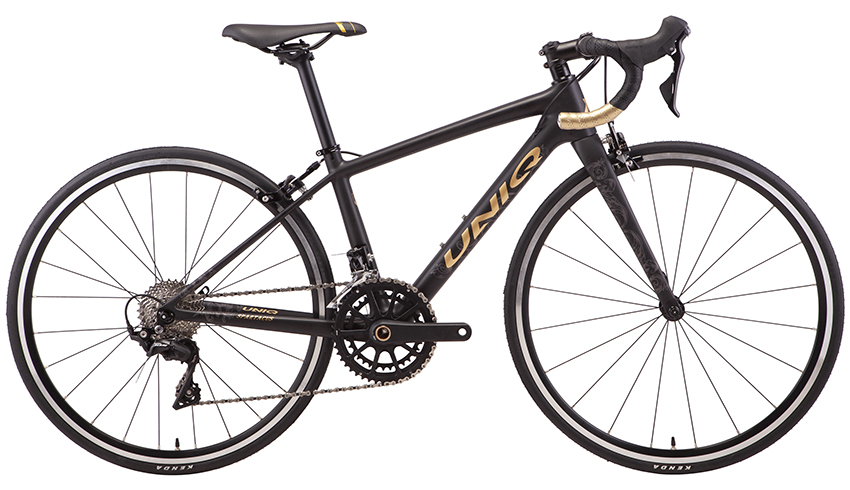

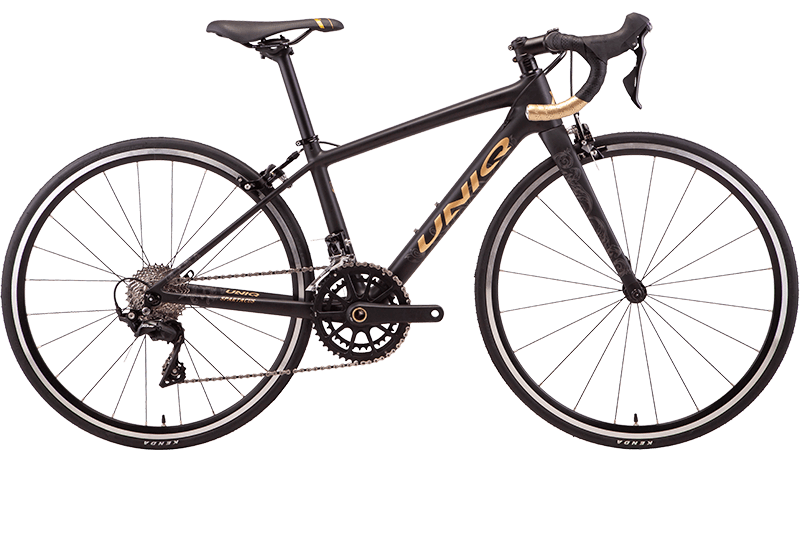

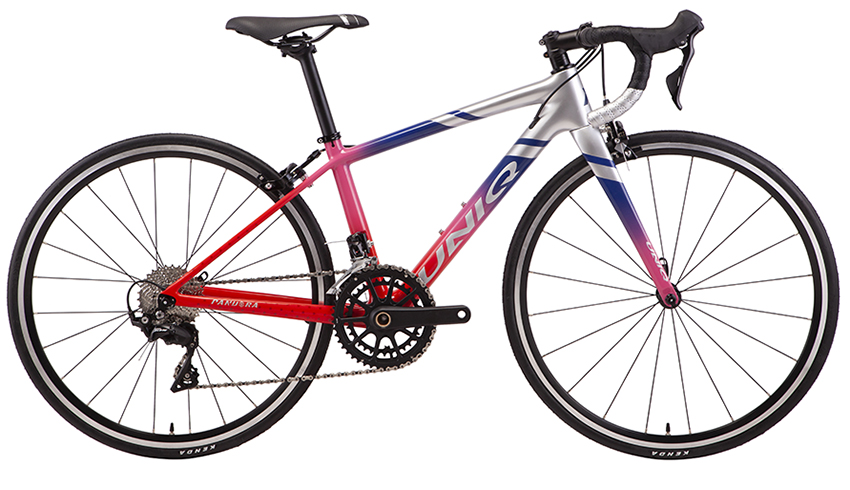

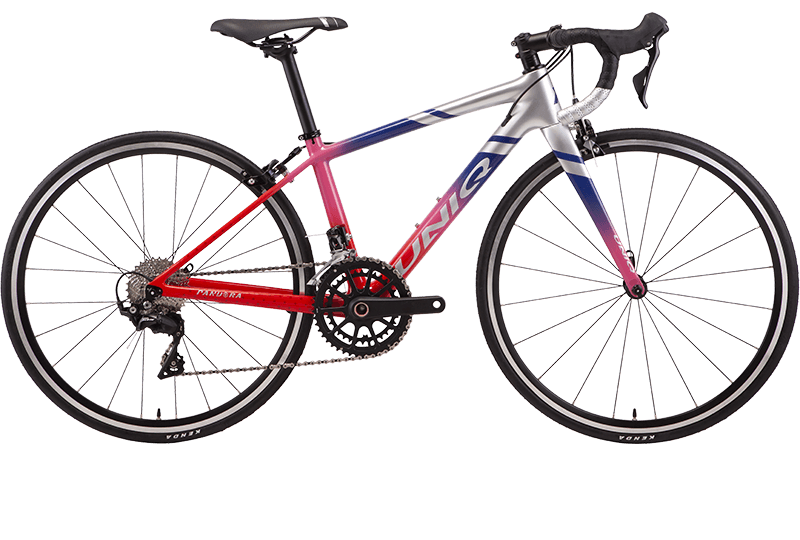

RC24
Speed 2x9s
Colour PandoraSparta
Weight 7kg
$1219
Ultralight, comfortable kids road bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The RC24, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber frame and fork bring kids a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ RC24, riding with confidence.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size 24x540
Steering angle 71°
Horizontal tube length 450 mm
Wheelbase 890 mm
Seat tube angle 73.5°
Seat tube length 340 mm
Head tube length 105 mm
STACK 437 mm
REACH 321 mm
Vehicle Configuration
Frame
24 inch ultralight carbon frame, Japan Toray T700 carbon fiber one-piece manufacture
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:60L, Rise: +/-6°
Tyre
KENDA 24x1.0 ultralight inner and outer tires
Chainwheel
Forged 140 mm aluminum crank, 46x34 T

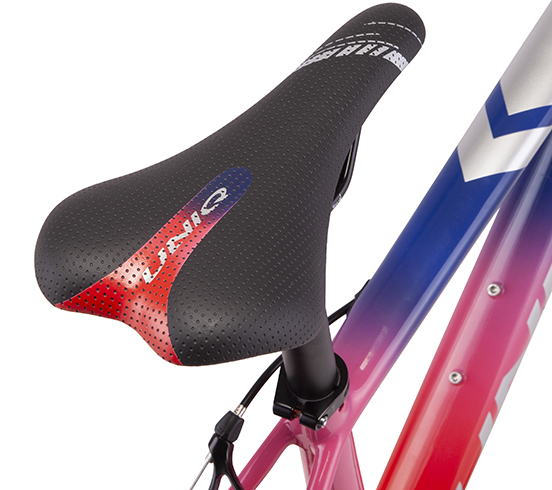

Saddle
Ergonomically designed to fit kid's anatomy
Front derailleur
SHIMANO SORA 9S
Shift lever
SHIMANO SORA 2X9S
Fork
24 inch ultralight carbon fork, 1-3/8 stem taper

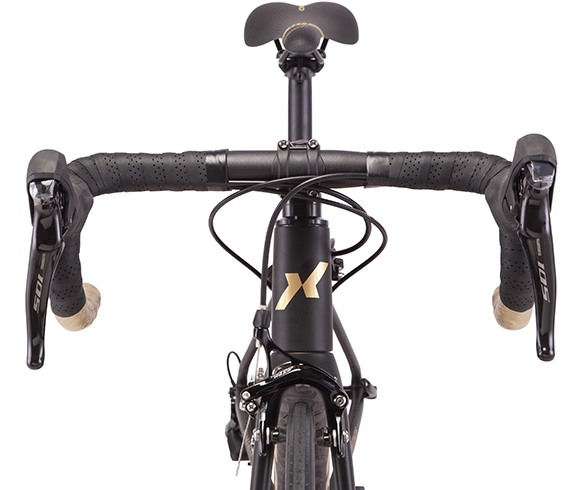

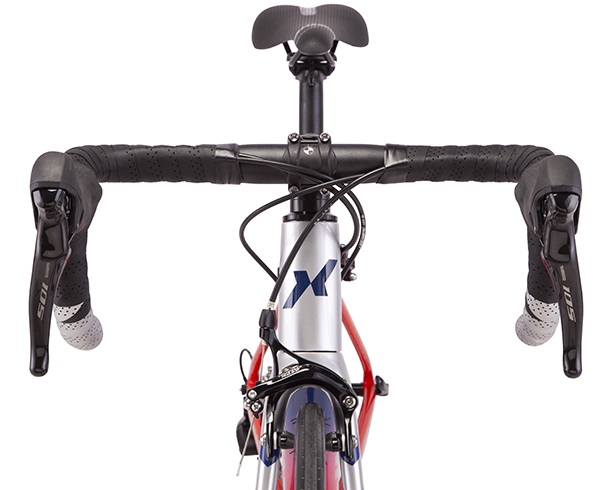

Handlebar
Carbon firber, Width:360 mm. Drop:110mm Rise:60mm
Wheel
24 inch double-chamber aluminum rims, G12 spokes, F:20H R:24H, F:100mm R:130mm CNC7075 aluminum hubs with sealed industrial bearings
Brake
UNIQ R700 dual axle
Freewheel
SUNRACE 11-30T
Seat Post
27.2x300L, Offset:10 mm

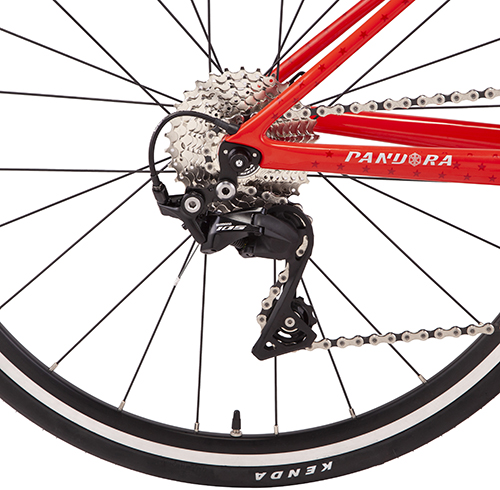

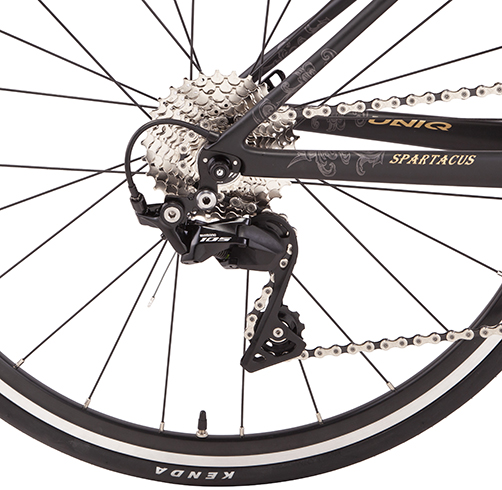

Rear derailleur
SHIMANO SORA 9S
