MC20
Speed 1x10S
Colour PandoraSparta
Weight 6.7kg
$1219

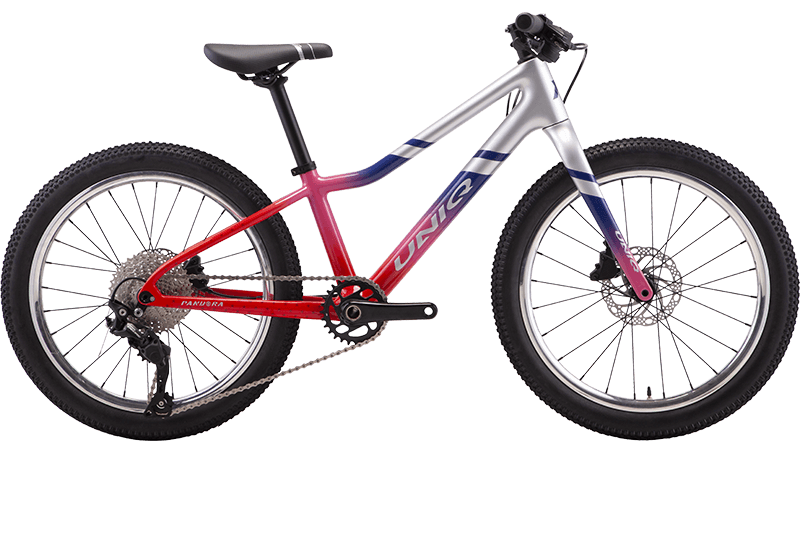

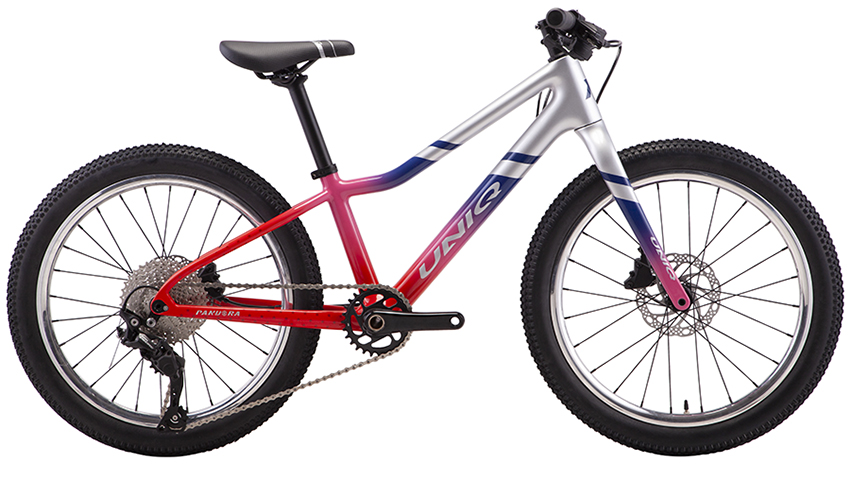

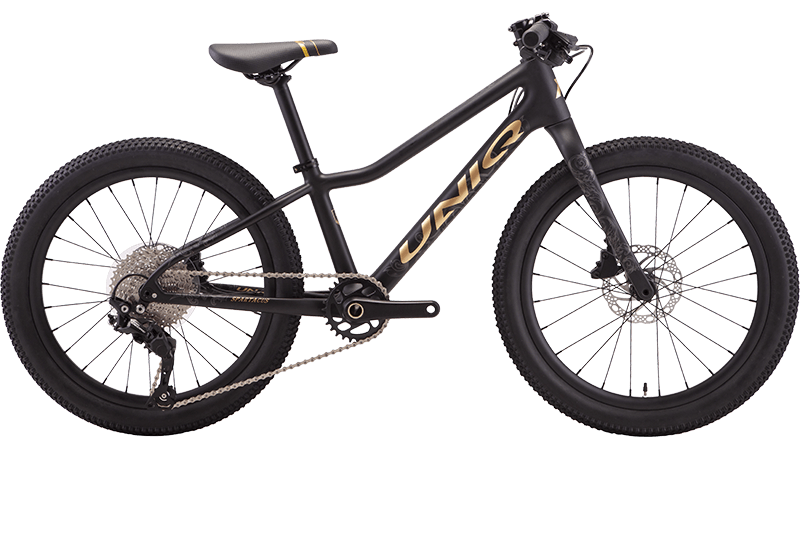

Ultralight, comfortable children mountain bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The MC20, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber frame and fork give you a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ MC20, riding with confidence.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size 20 inch
Horizontal tube length 296 mm
Steering angle 69°
Wheelbase 836 mm
Seat tube angle 71°
Seat tube length 260 mm
Head tube length 115 mm
STACK 404 mm
REACH 300 mm
Vehicle Configuration
Frame
20 inch ultralight carbon frame. Japan Toray T700 carbon fiber one-piece manufacture
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:35 mm, Rise: +/-6°
Tyre
KENDA 20*1.75 ultralight inner and outer tires
Chainwheel
Forged 127 mm aluminium crank,32T

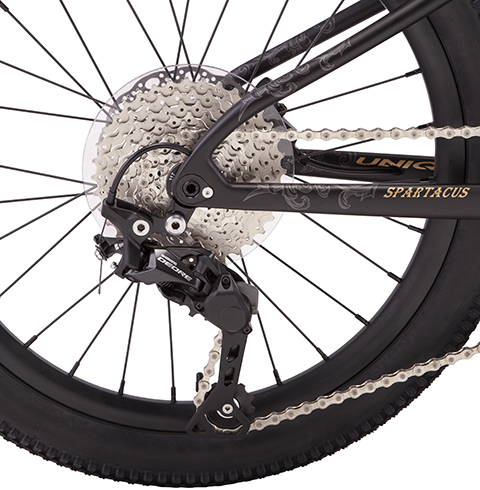

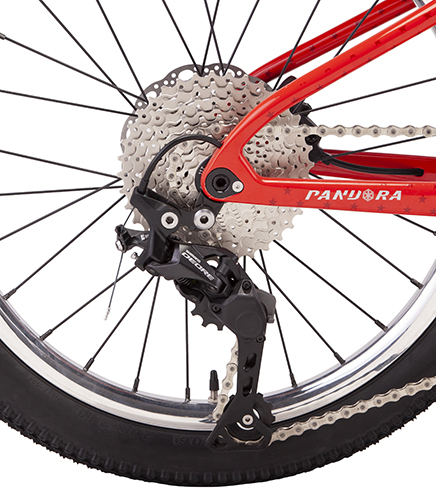

Rear derailleur
SRAM GX 1x10s

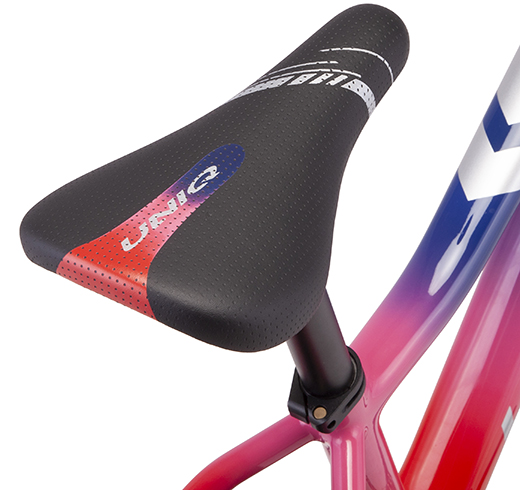

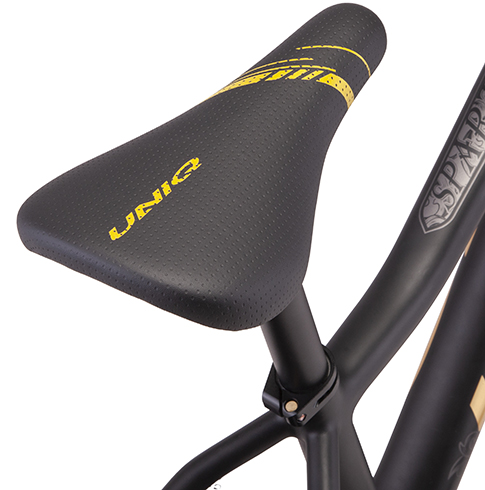

Saddle
Ergonomically designed to fit kid's anatomy
Fork
20 inch ultralight carbon fiber fork,1-3/8 stem taper

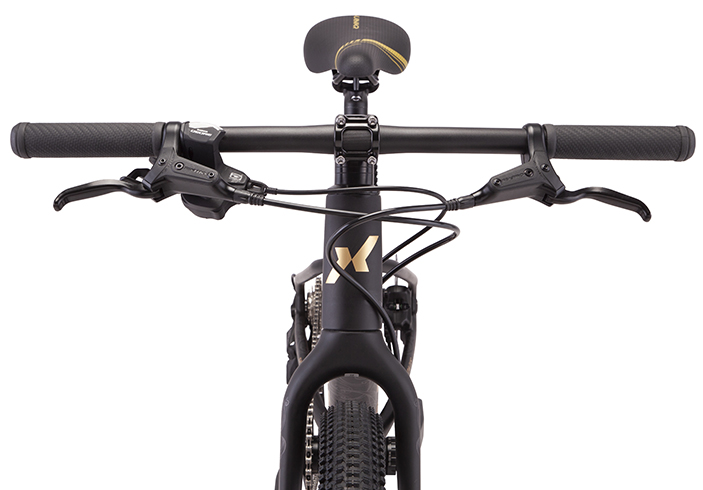

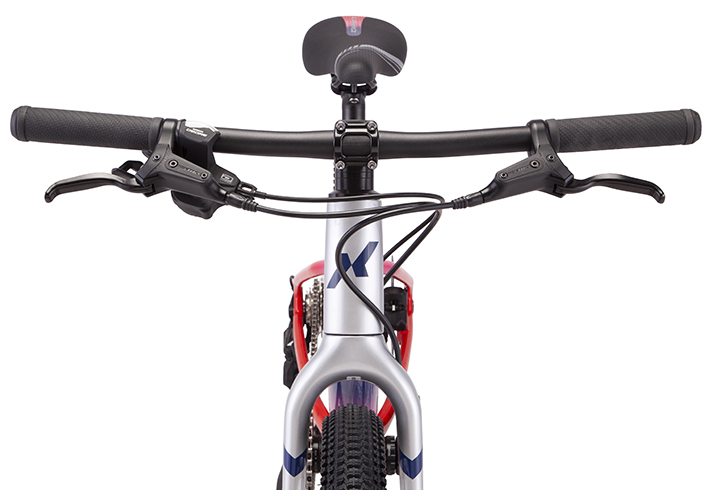

Handlebar
Aluminum, Width:560 mm. Rise:20 mm
Wheel
20 inch double-chamber aluminum rims, G14 spokes, F:24H R:24H. F:100x12 mm R:135x12 mm AL alloy hubs with sealed industrial bearings
Brake
TEKTRO flat mounted hydraulic disc brake, front and rear disc 140 mm
Freewheel
SRAM PG1030 10S 11-32T
Shift lever
SRAM GX
Seat Post
27.2x300L Anodised 7075 aluminum
