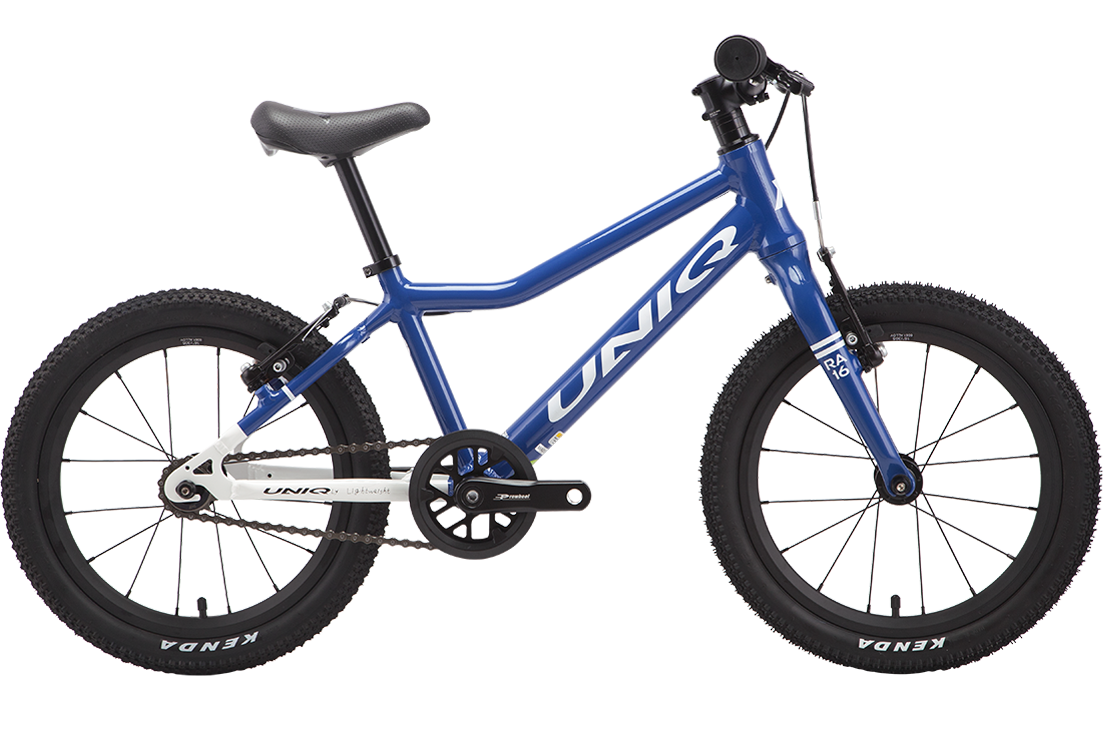

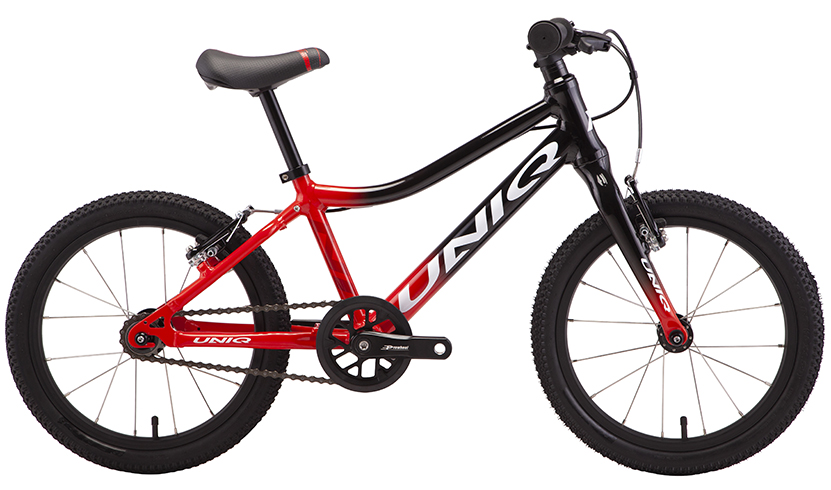

RA16
Speed Single

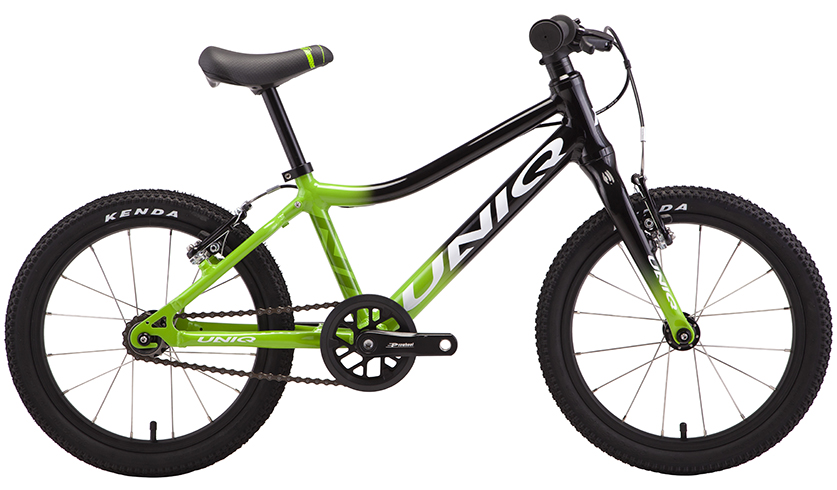

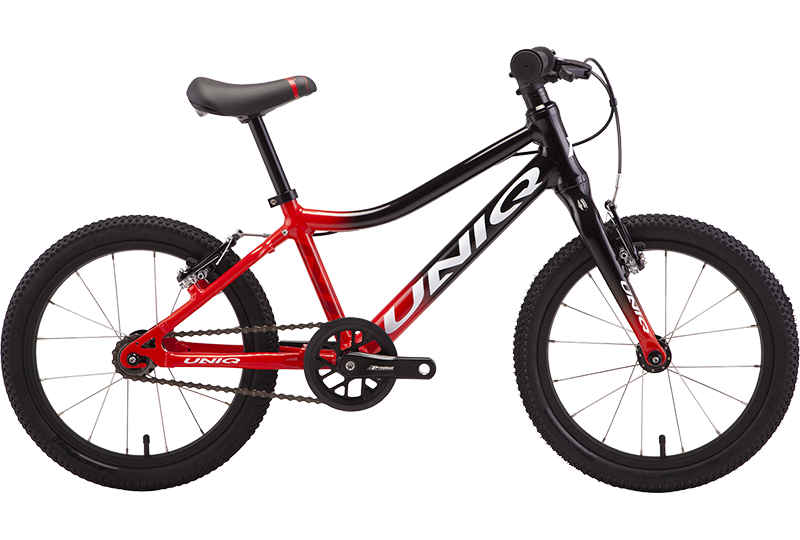

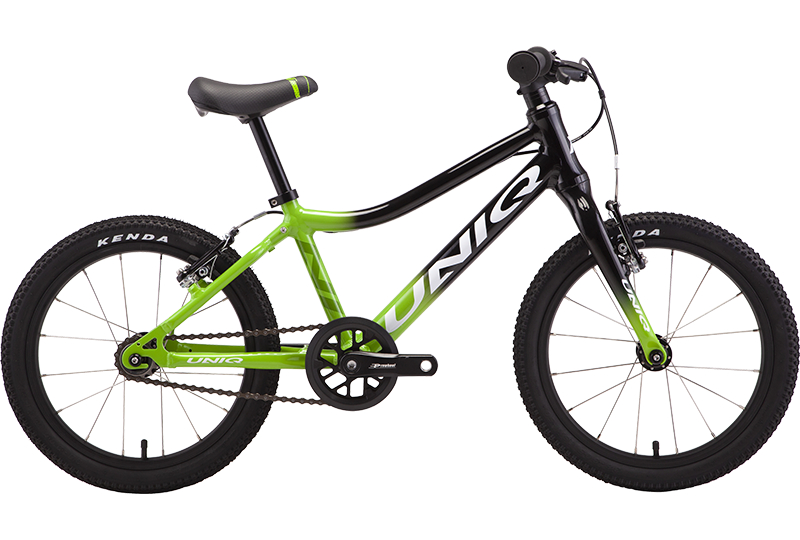

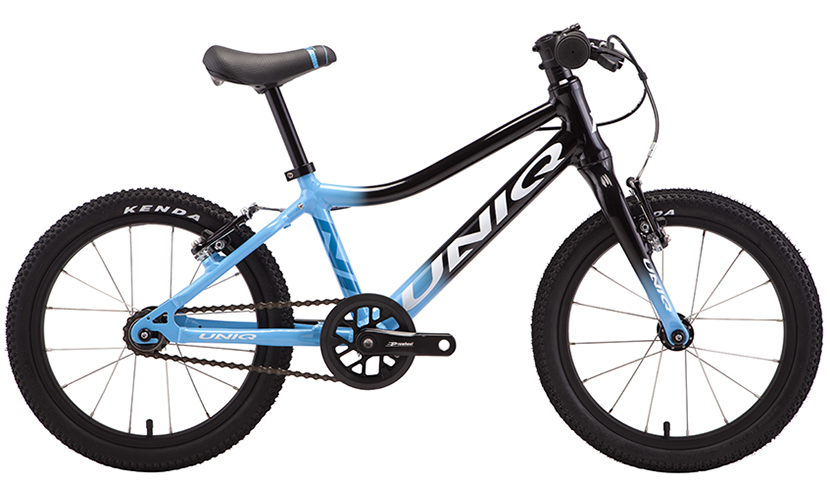

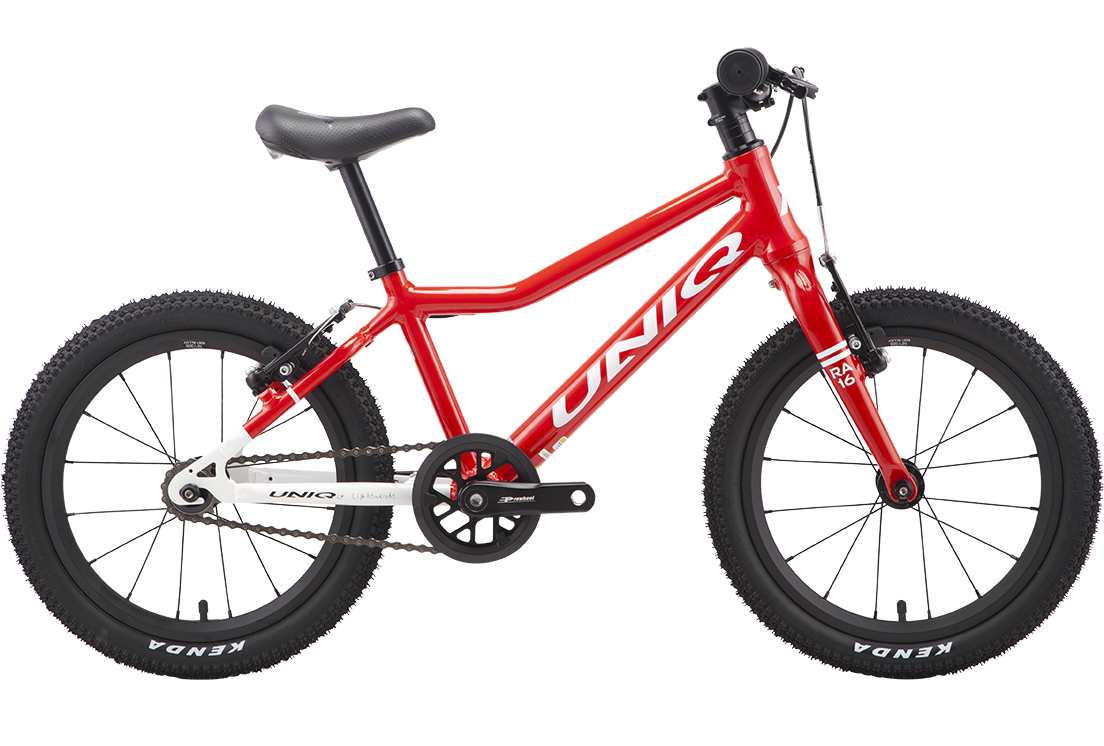

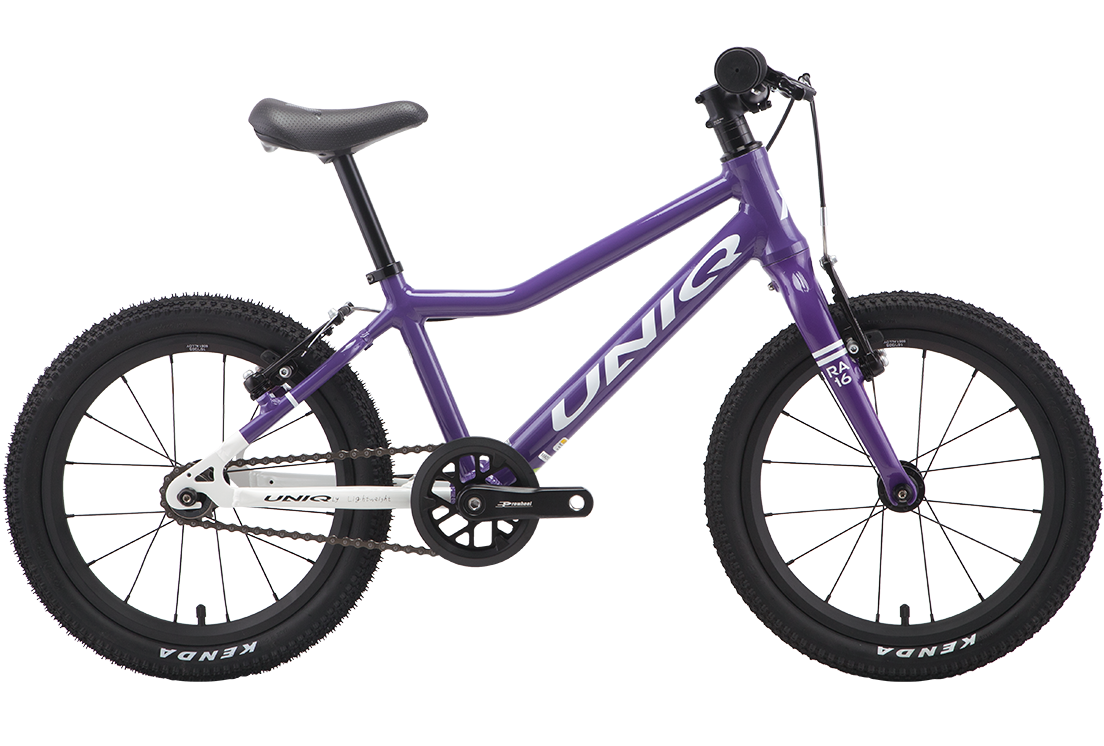

Colour PurpleBlue WhiteKhakiRed WhiteBlack GreenBlack RedBlack Blue
Weight 5.2kg
$435
Ultralight, comfortable kids mountain bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The RA16, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber fork & aluminum frame give you a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ RA16, riding with confidence.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size 16 inch
Cockpit/handle height 600 mm
Steering angle 69°
Horizontal tube length 410 mm
Wheelbase 705 mm
Seat tube angle 68°
Head tube length 105 mm
Minimum saddle height 465 mm
Largest saddle height 575 mm
Vehicle Configuration
Frame
16inch lightweight alloy frame
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:35 mm, Rise: +/-6°
Tyre
KENDA 16*1.5 ultralight inner8 and outer tires
Chainwheel
Forged 98 mm aluminium crank, front 28T and rear 15T

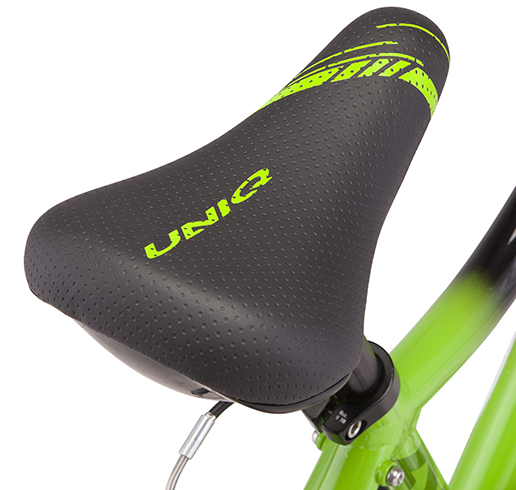

Saddle
Ergonomically designed to fit kid's anatomy
Fork
16inch ultralight carbon fork,1-3/8 stem taper
Handlebar
Aluminum, Width:460 mm
Wheel
16inch double-chamber aluminum rims, G14 spokes, F:12H R:18H, F:80 mm R:120 mm aluminum hubs with sealed industrial bearings
Brake
TEKTRO separate aluminum brakes, kid-friendly brake levers

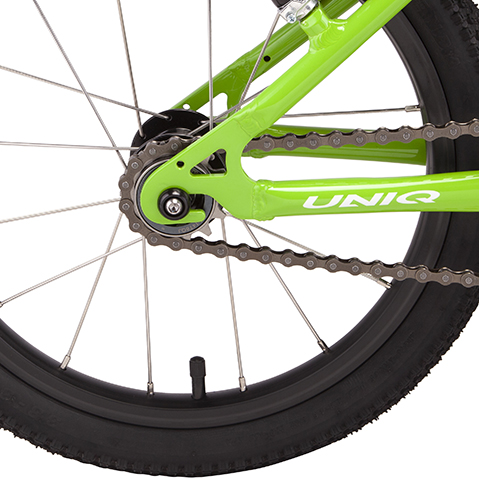

Freewheel
Single speed with 15T
Seat Post
Anodised 6061 aluminum, safety plug
