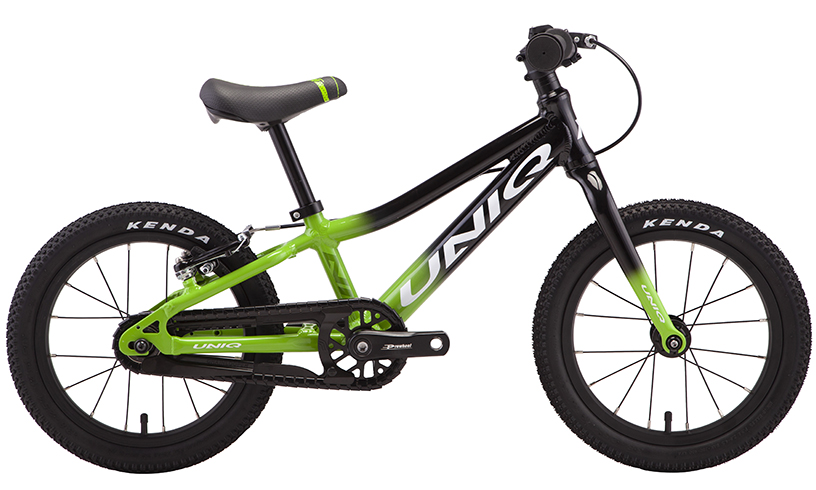

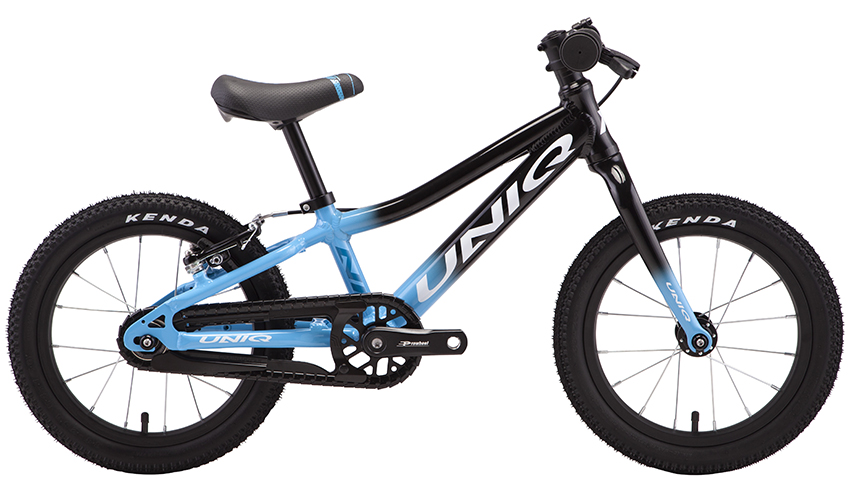

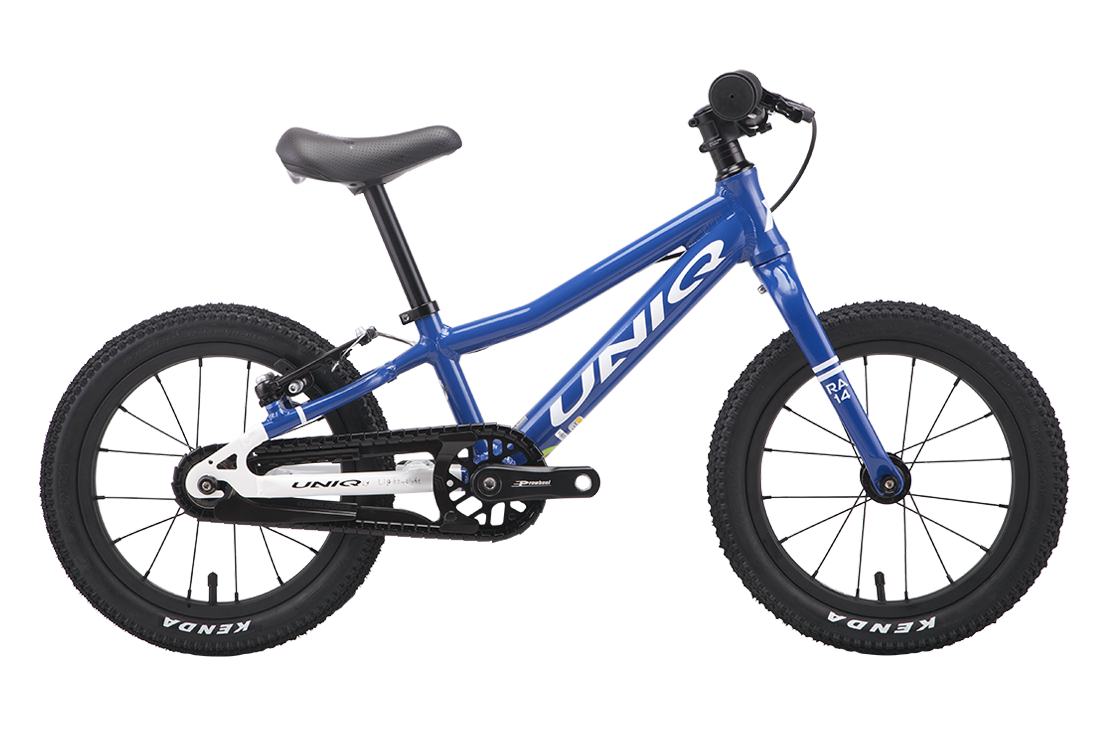

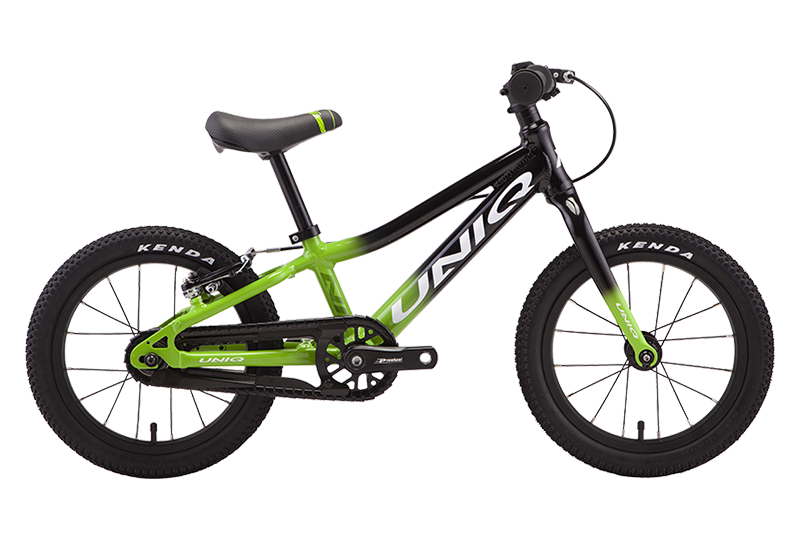

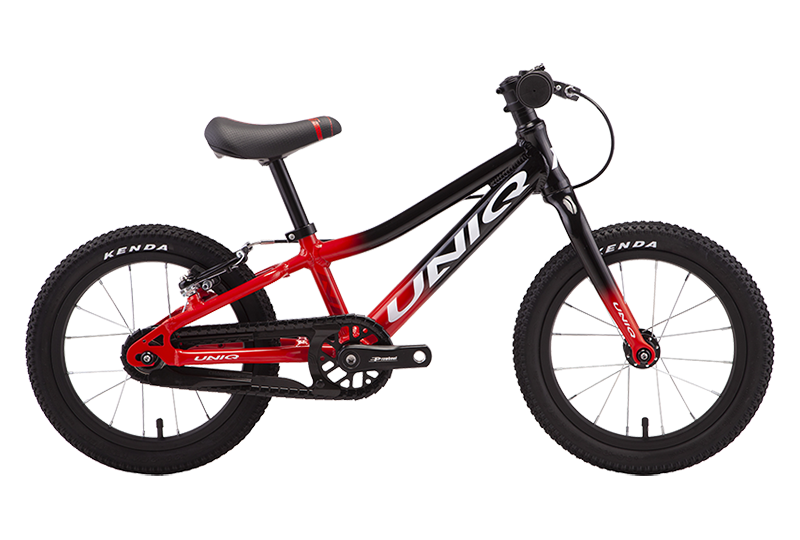

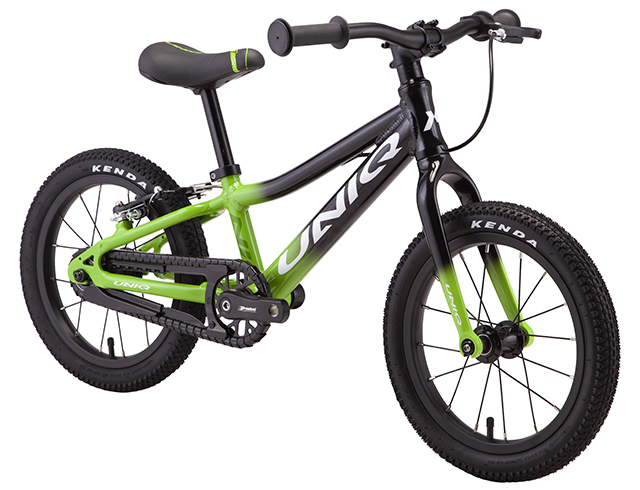

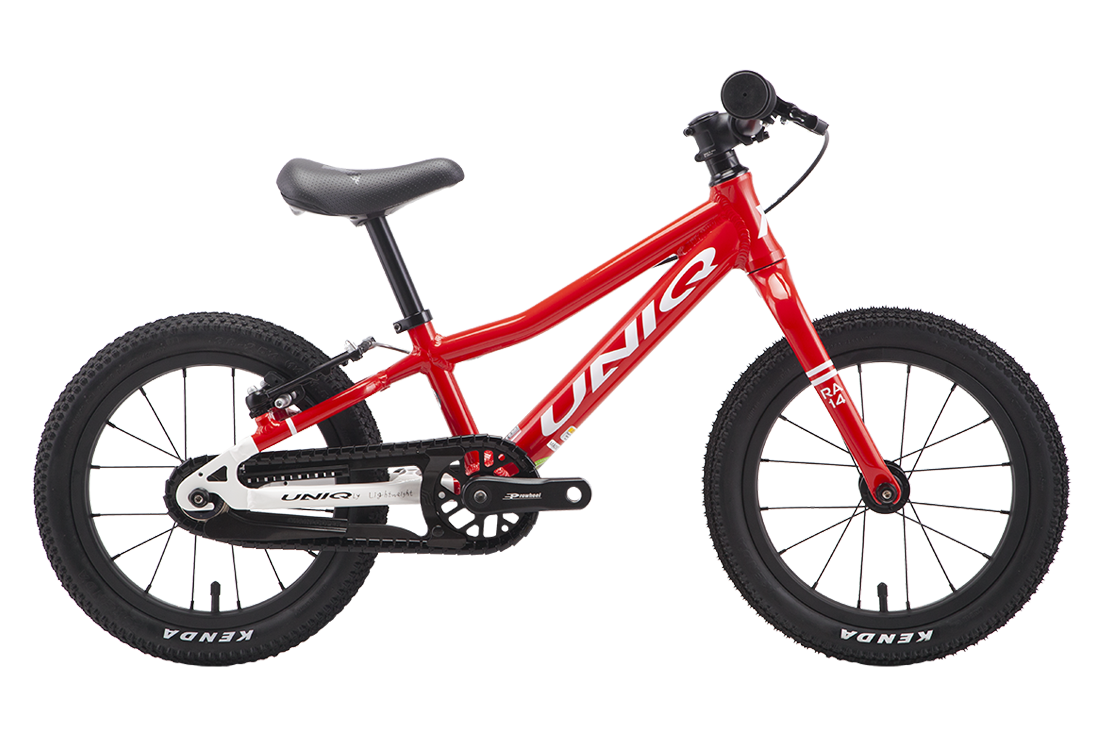

RA14
Speed No
Colour PurpleBlue WhiteRed WhiteBlack GreenBlack RedBlack Blue
Weight 4.6kg
$426

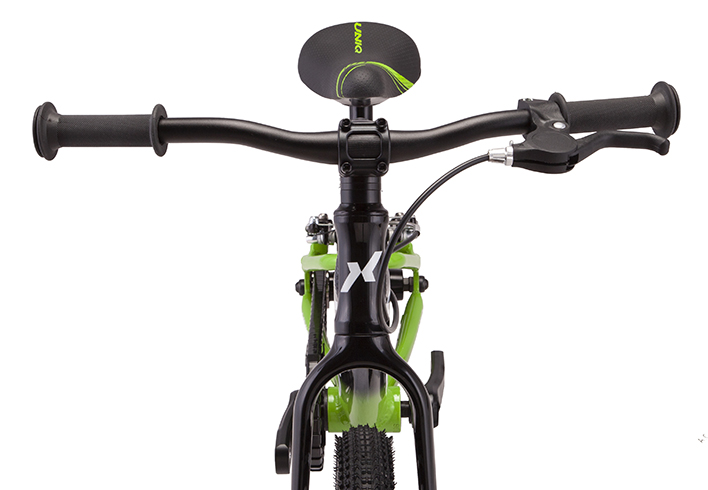

Ultralight, comfortable kids mountain bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The RA14, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber fork & aluminum frame give you a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ RA14, riding with confidence.
Geometric Data
Vehicle Configuration
Technical Details
Geometric Data
Tire/wheel size 14 inch
Cockpit/handle height 535 mm
Steering angle 68°
Horizontal tube length 355 mm
Wheelbase 643 mm
Seat tube angle 68°
Head tube length 90 mm
Minimum saddle height 410 mm
Largest saddle height 490 mm
Vehicle Configuration
Frame
14 inch lightweight aluminum frame
Headset
Fully integrated 38 mm headset
Stem
Aluminum, Length:35 mm, Rise: +/-6°
Tyre
KENDA 14*1.5 ultralight inner and outer tires
Chainwheel
Forged 89 mm aluminium crank, front 25T, intergrated protective cover

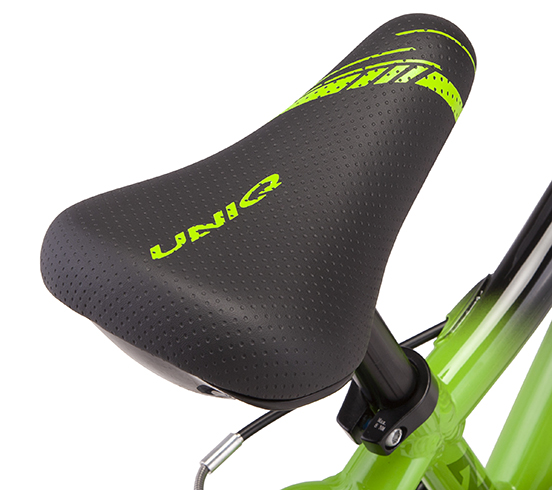

Saddle
Ergonomically designed to fit kid's anatomy
Fork
14inch ultralight carbon fork, Diameter:25.4 mm
Handlebar
Aluminum flat handlebar, Width:420mm
Wheel
14inch aluminum rims, G14 spokes, F:16H R:16H, F:95 mm R: 120mm aluminum hubs with sealed industrial bearings
Brake
TEKTRO separate aluminum brakes, kid-friendly brake levers
Freewheel
Single speed with 15T
Seat Post
Anodised 6061 aluminum, safety plug
