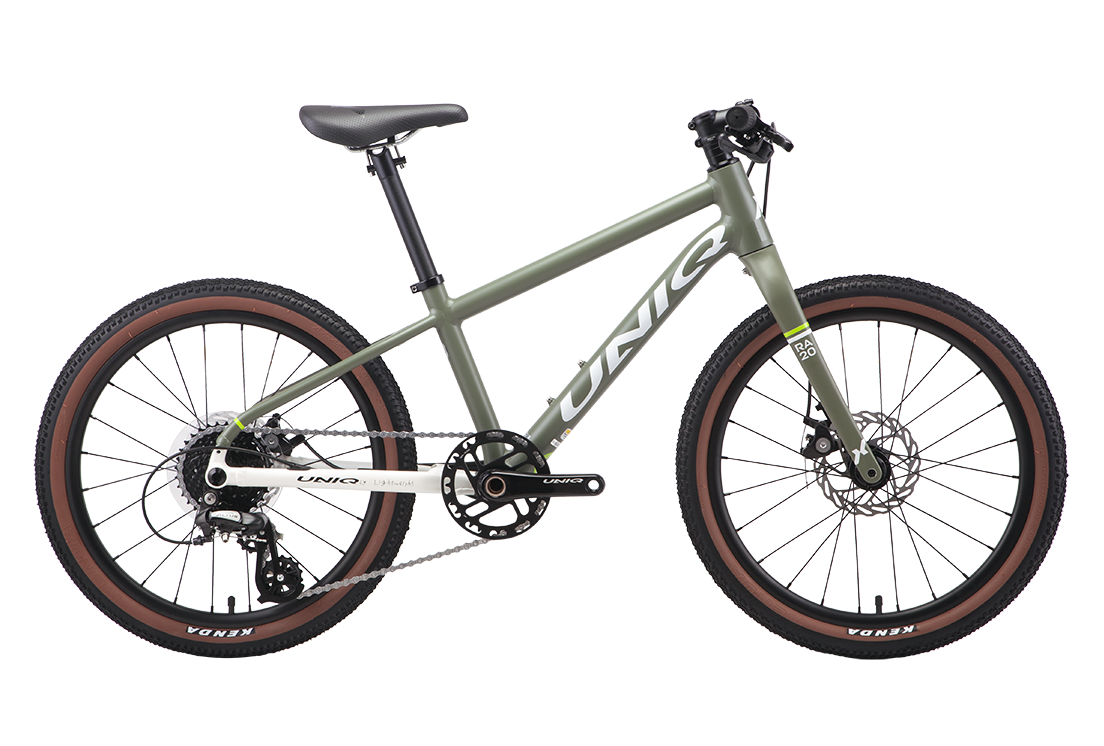

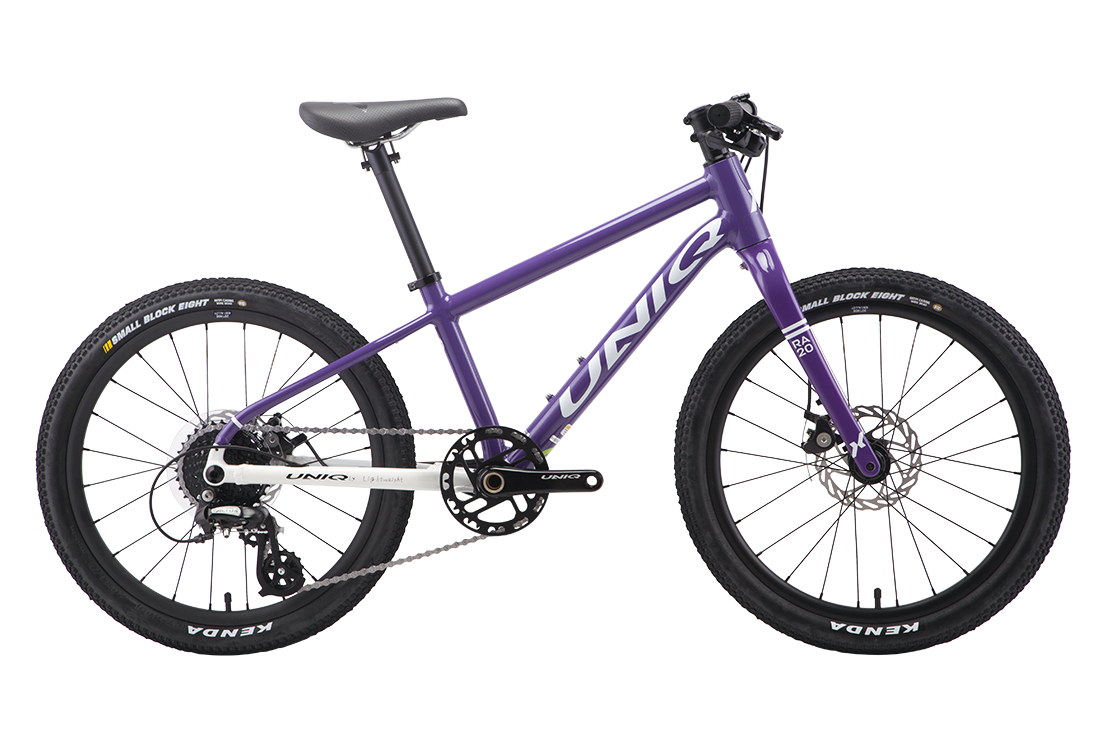

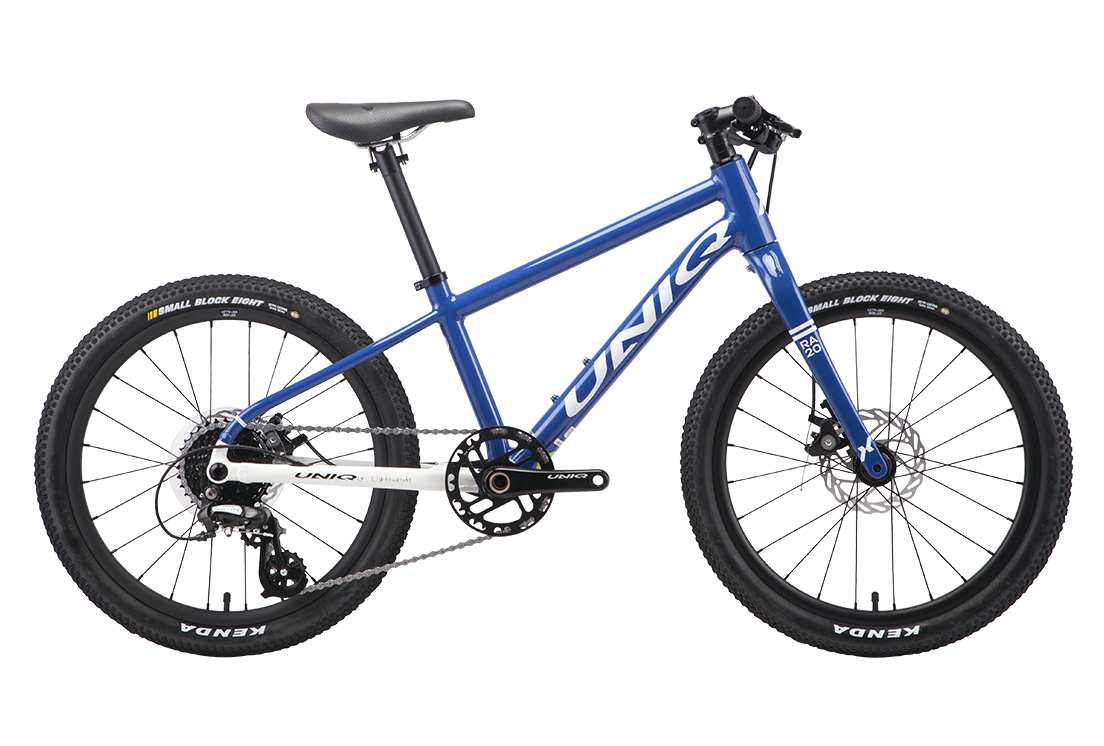

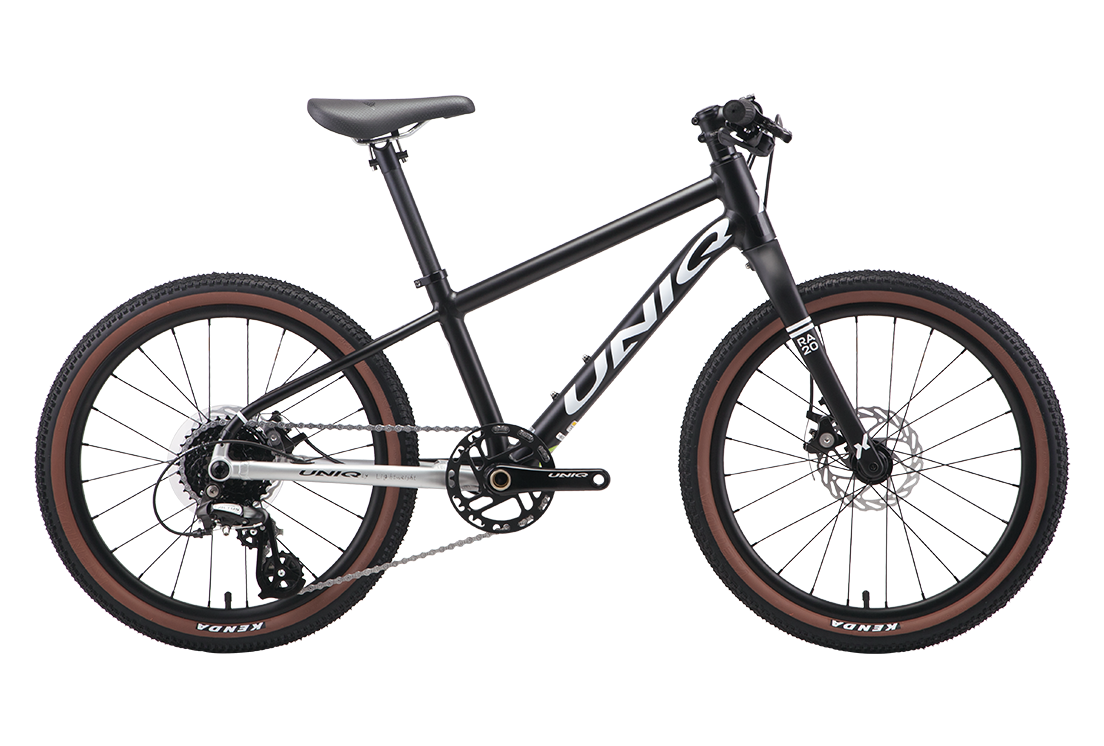

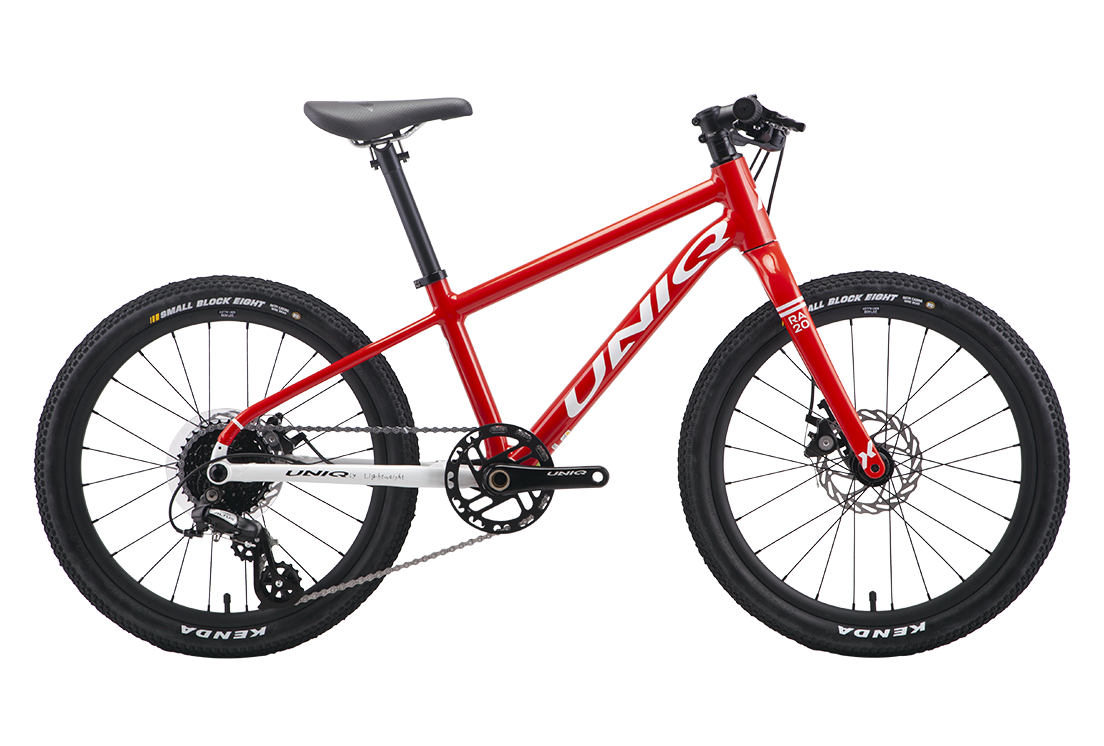

RA20
Speed 8S
Colour PurpleBlue WhiteKhakiRed WhiteBlack White
Weight 7kg
$658
Ultralight, comfortable kids mountain bikes
Perfect performance, technology and unique style have always been the essential pursuit of cycling. The RA20, developed and designed by UNIQ, can meets all your requirements. The ultralight carbon fiber fork & aluminum frame give you a wind-like riding experience. Geometric body specially designed for kids & hidden inner wiring bring you the ultimate visual experience. Riding with UNIQ RA20, riding with confidence.

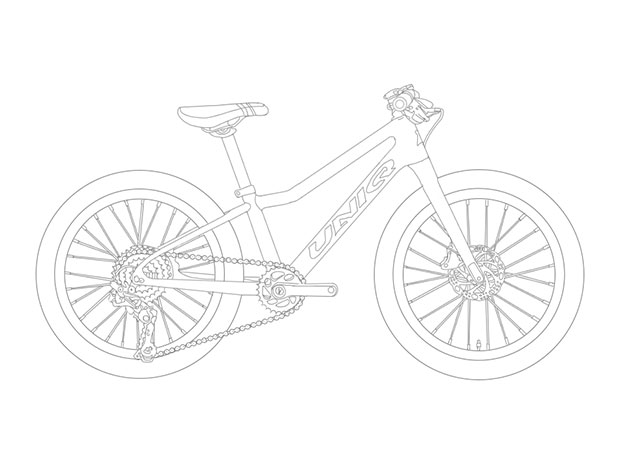

Geometric Data
Vehicle Configuration
Technical Details
Geometric Data

Tire/wheel size20 inch
Horizontal tube length445 mm
Steering angle69°
Wheelbase852 mm
Seat tube angle70°
Seat tube length280 mm
Head tube length115 mm
STACK404 mm
REACH300300 mm

Vehicle Configuration
Frame
20inch lightweight sluminum frame
Headset
Fully integrated 1" – 1 3/8" headset
Stem
Aluminum, Length:50 mm, Rise: +/-6°
Tyre
KENDA 20*1.75 ultralight inner and outer tires
Chainwheel
Forged 127 mm aluminium crank, front 32T and rear 11-32T
Rear derailleur
Shimano RD-M3155GS 1x8s
Saddle
Ergonomically designed to fit kid's anatomy
Chain
KMC X 9
Fork
20 inch ultralight carbon fork,1-3/8 stem taper
Handlebar
Aluminum, Width:560 mm, Rise:0 mm
Wheel
20 inch double-chamber aluminum rims, G14 spokes, F:24H R:24H, F:100x12 mm R:142X12 mm aluminum hubs with sealed industrial bearings
Brake
TEKTRO flat mounted mechanical disc brake, professional kids' aluminumbrake handle. Front and rear disc 140 mm
Freewheel
Shimano 8S 12-32T
Shift lever
Shimano SL-M310-R
Seat Post
Aluminum 27.2x250L
